(2) Steady Rest, Sony 2-Axis DROs, 132" Between Centers
- Sold Auctioneer has chosen not to publish the price of this lot
- Lot # 12
- System ID # 3671198
- End Date Central Standard Time
- Start Date Central Standard Time
- Item # 3671199

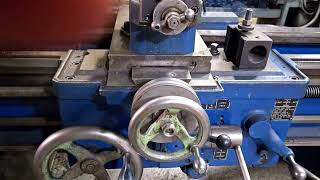

20" x 144" SouthBend Turnado Engine Lathe
CAPACITY
Swing over bed and saddle wings: 20"
Swing over cross slide: 13"
Swing over cross slide without chip guard: 14”
Swing over compound rest: 4"
HEADSTOCK
Spindle nose: 8" D-1 Cam-Lock
Size of center (Morse taper): No.5
Distance from spindle center to floor: 45-1/2”
Hole through spindle: 3-5/32"
SPINDLE SPEEDS
1800-900 rpm motor (two speeds):
(18) 30-1580 RPM
Two-speed motor: 10-5 HP
BED
Width : 13"
Length: 150"
Distance Between Centers: 132”
GEARBOX-THREADS & FEEDS
Number of thread selections: 60
Range of threads (20T stud gear)
60 selections: 2-3/4"-160" t.p.i.
Range of threads (40T stud gear)
Range of longitudinal feeds
(60): 0.0021"-0.1242"
Range of cross-feeds
(60): 0.0011 "-0.0678"
Lead screw: 1-3/8"- 4"
SADDLE
Cross-feed travel (without taper attachment) ... 12-1/4"
Cross-feed travel (with taper attachments): 14"
Compound rest travel: 3-1/2"
Square tool post opening: 1" x 1-7/64"
TAILSTOCK
Spindle diameter: 2-1/2"
Spindle travel: 6"
Size of centers (Morse taper): No.4
Set over in either direction from center: 1/2"
Equipped with:
Sony 2-Axis DROs
Tailstock
Threading IN/MM
(2) Steady Rest
Approx. Machine Dims-162" Overall Length x 65" W x 76"H
Weight- Approx. -12,000 Lbs.
