IMS Impact 800 Coordinate Measuring Machines (2008)





Description

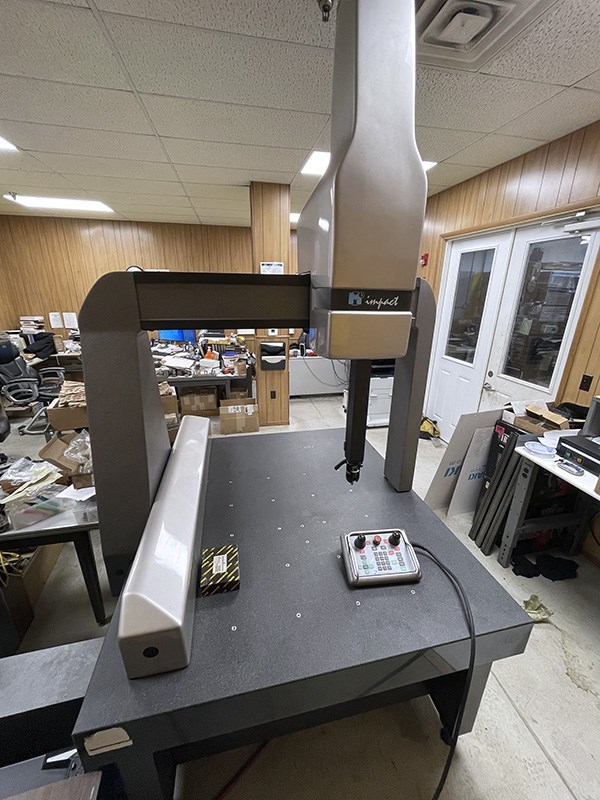

IMS Impact800 Matrix CMM complete with 32-Bit architecture electronic control system, Virtual-DMIS measuring software, Renishaw PH10M indexable measuring probe head and accessories


(X) Bridge Axis Travel: 29.5" (750mm)

(Y) Table Axis Travel: 31.5" (800 mm)

(Z) Vertical Axis Travel: 21.7" (550 mm)



Accuracy:

ISO 10360 M= 3.5 + L/250 microns, B89 = 0.0095/400

Optical linear scales of 0.1 -micron resolution

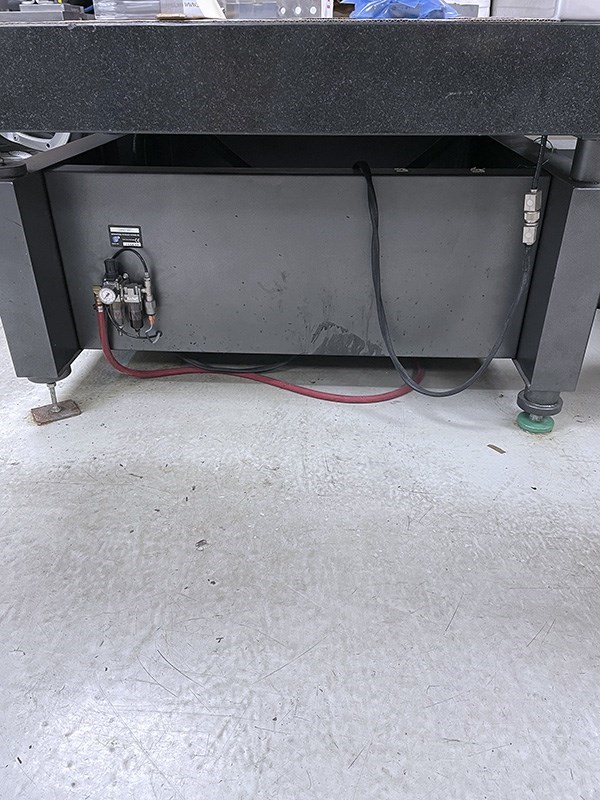

Air Bearings to each axis



On-Motion Electronic Control System:

*32-bit architecture On-Motion PCI continuous motion servo control card assembled into the PC

*Electric controller manufactured to EUC standards

*Systems Desk for computer and peripherals

*On-line system diagnostics software

*Continuous Motion Technology interpolation software for measuring cycle time optimization

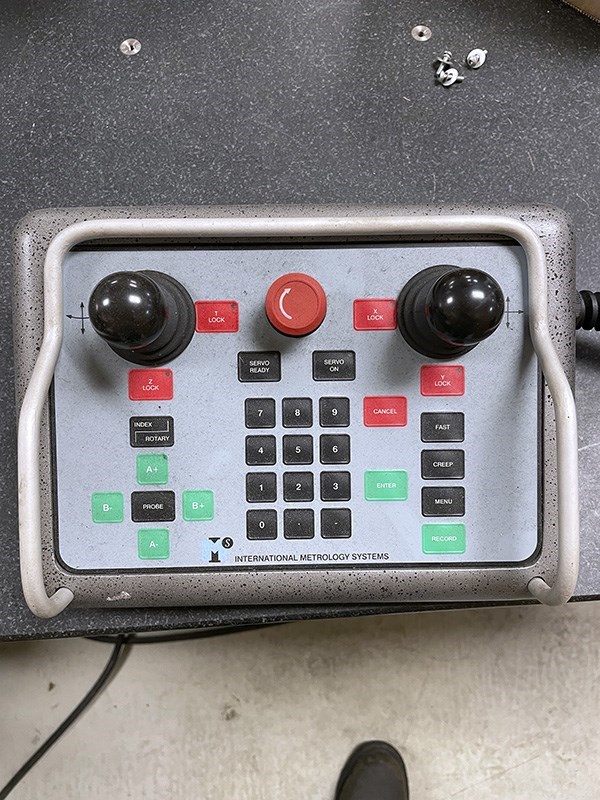

*Portable twin joystick teach box unit with interactive function membrane keypad (30 keys)

*Fully integrated Renishaw probing electronic control unit





Equipped With

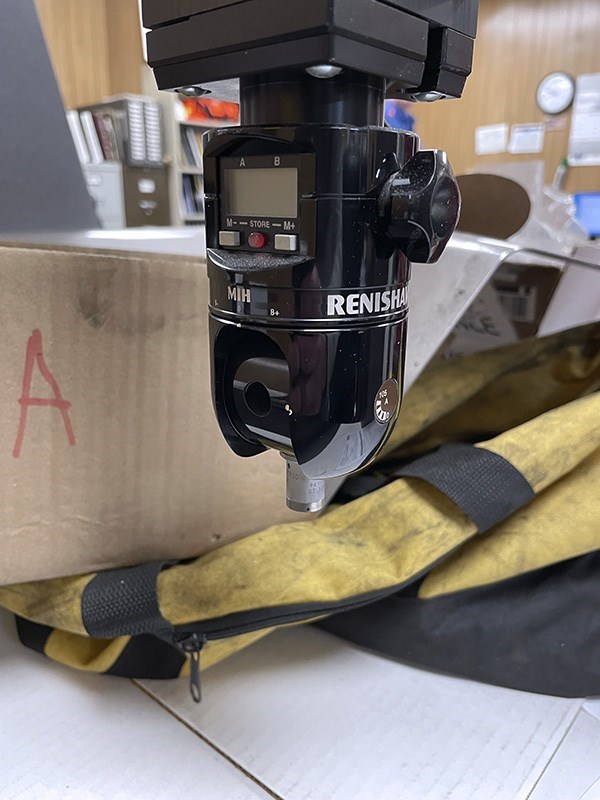

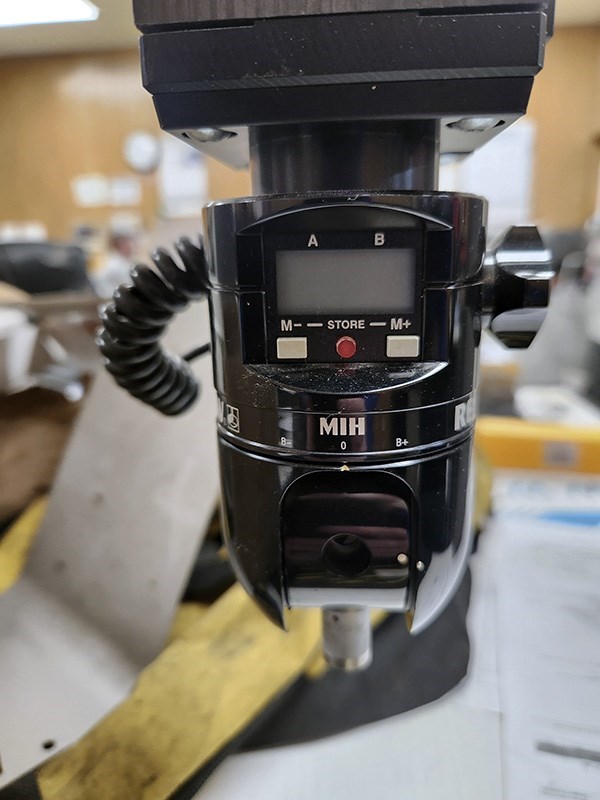

Renishaw M L H Indexable Probe Head Kit

Renishaw TP20 touch trigger probe

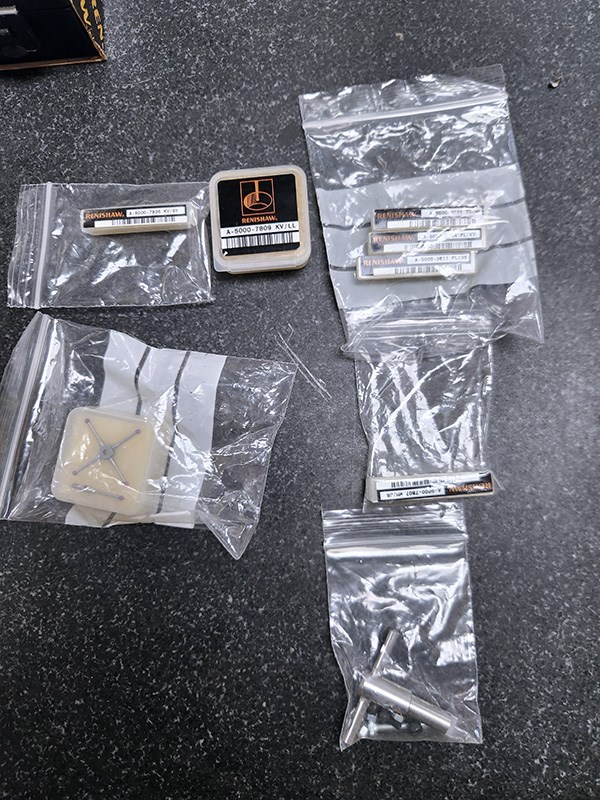

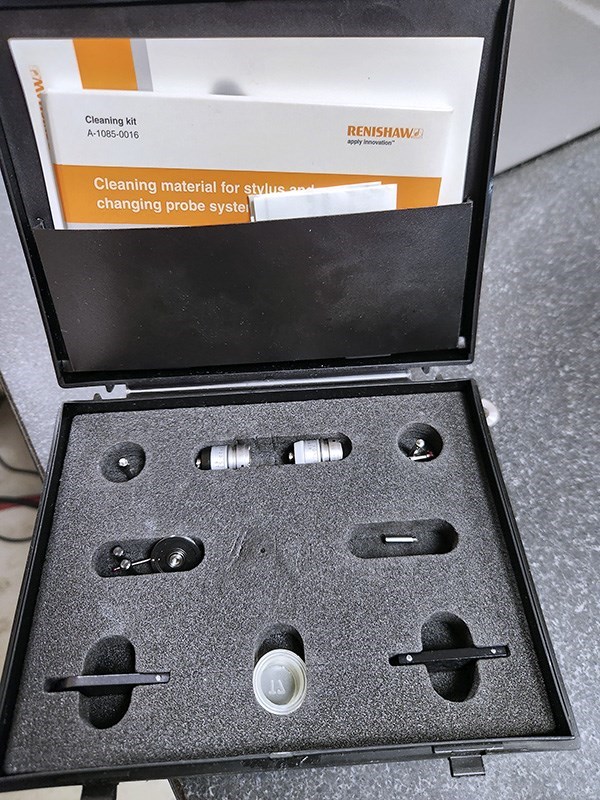

Boxed Suite of Renishaw Styli compromising



Buyer responsible for loading and freight
