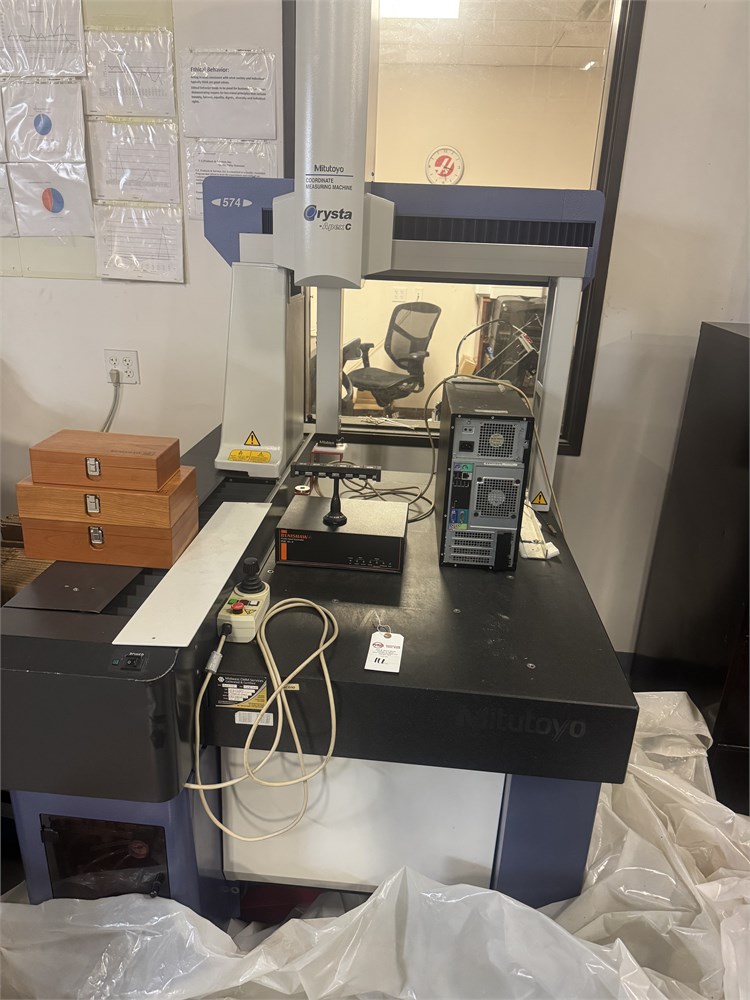

2006 - Mitutoyo Crysta Apex-C Coordinate Measuring Machine

× Bidding has ended on this item.
Ended
LIVE WEBCAST
Prev Lot
  Lot # 111
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Logistics
A loading fee of $1200 will be automatically added the winning invoice. Buyer responsible for all transportation costs. Removal will take place 09/15-09/19.

  • Lot # 111
  • System ID # 4081260
  • Item # 4081261
Description

Renishaw PH10-T Probe, Renishaw PHC10-2 Probe Head Controller, Box of Renishaw Probe Extensions, 46" x 28" Granite Surface Plate Table

X-Axis Range: 19.88 in
Y-Axis Range: 27.75 in
Z-Axis Range: 15.94 in
Resolution: 0.000004 in
Drive speed CNC Mode Max. Moving Speed = (16.93"/s) (3D)
Drive Speed CNC Mode Max. Measuring Speed = .31"/s
Joystick Mode Moving Speed = 0-3.1"/s
Joystick Mode Measuring speed = 0-.1"/s
Max Acceleration: 0.17G (3D)
Measuring Table Size: 25.12" x 45.66"
Workpiece Max Height: 21.46"
Workpiece Max Load: 396 lbs
Approx. Dimensions: 57.5" x 43" x 86.5"
Approx. Weight: 1,452 lbs
Air consumption 50L/min or 1.8CFM (under normal condition)
Air pressure 0.4Mpa (4kgf/cm2) or 58 PSI

Equipped with:
Renishaw PH10M Probe Head
Renishaw HCU1 Control Unit
Renishaw Changing Rack
MCosmos Software
All Available Manuals
