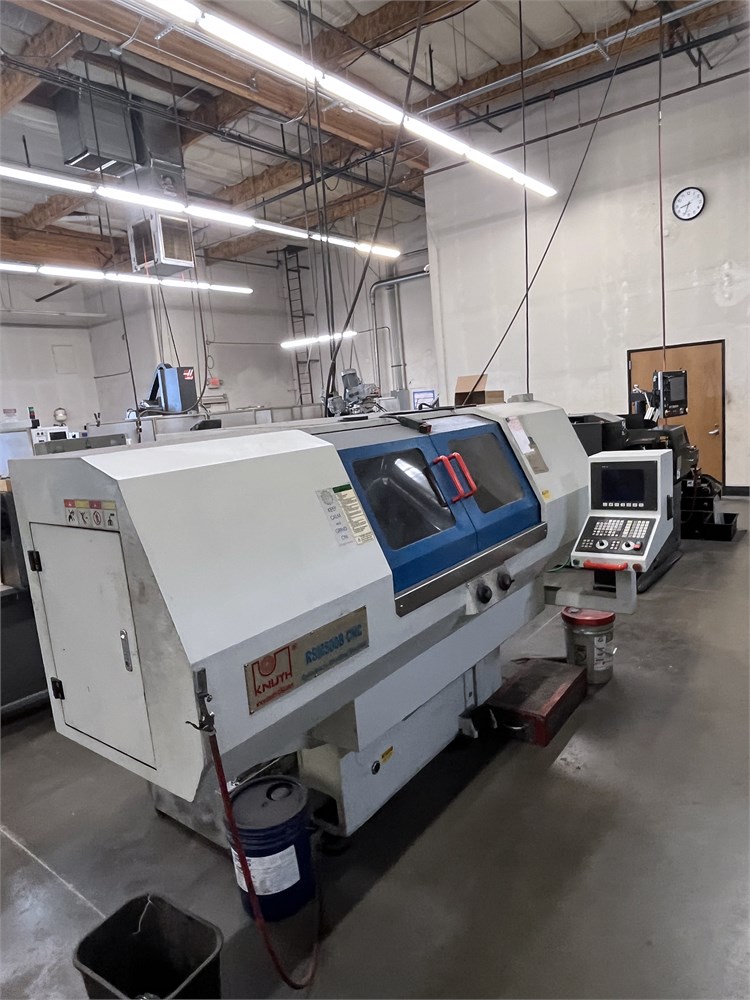

Knuth RSMB500 Cylindrical Grinder (2017)

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 12
Next Lot
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
18 Days, 09:23:11
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Illinois

  • Lot # 12
  • System ID # 4236406
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4236407
Description

Knuth RSMB500 Cylindrical Grinder (2017)



Description


Knuth-RSMB500-CNC Cylindrical Grinder-2017; Workpiece length: 22"; Grinding length: 22"; Grinding diameter: 8";Table feed, infinitely variable: 4 – 157 mm/min; Work spindle speed, infinitely variable: 40 – 460 rpm; Grinding spindle speed: 1670 rpm

Working area
Center height: 5"
Workpiece length: 22"
Grinding length: 22"
Workpiece weight (max.): 8 lbs.
Grinding diameter: 8"
X axis travel: 6"
Z axis travel: 24"
Inside grinding diameter: 0.51 – 4"
Inside grinding depth: 5"
Max. table swivel range (r+l): 3° / 9°

Feed
Table feed, infinitely variable: 4 – 157 mm/min

Headstock
Work spindle speed, infinitely variable: 40 – 460 rpm
Headstock swivel range: 360° / 45° pitch
Work spindle taper: MT 4

Grinding Headstock
Grinding spindle speed: 1670 rpm
Inside grinding spindle speed: 15000 rpm
Grinding headstock swivel range (r+l): 30° / 180°

Tailstock
Tailstock taper: MT 4

Drive Capacities
Motor rating
- Work spindle: 1 HP
- Inside/Outside grinding: 5 HP
- X / Z axis feed: 1.7 / 1.7 HP

Total connected load: 11 kVA

Dimensions/Weight
Grinding wheel dimensions in 16 x 2 x 8"
Dimensions: 114 x 88 x 69"
Weight: 5952 lbs.
Part No. 100 018

Includes a few arbors for different ID wheel sizes.



Equipped With

Fagor 8055i FL-TCO Control,
Parts for this machine are still being manufactured and service is still provided by Knuth,
